FORD 302 — 289-290 HP TURNKEY ENGINE

FORD 302 — 300 HP TURNKEY ENGINE

FORD 302 — 330-331 HP TURNKEY ENGINE



FORD 351W — 290-300 HP TURNKEY ENGINE

FORD 351W — 325-330 HP TURNKEY

FORD 351W — 350-354 HP TURNKEY ENGINE

FORD 351W — 360-365 HP TURNKEY ENGINE

MIDNIGHT TURNKEY ENGINES for
MUSTANG, GALAXY, FAIRLANE, THUNDERBIRD, GALAXY, FALCON, MERCURY, RANCHERO, COMET, or CUSTOM TRUCKS SUCH AS F-100, F-150

BEST STREET DEAL!

NEW UPGRADES AVAILABLE:

  • HOLLEY SNIPER FUEL INJECTION SYSTEM
  • SERPENTINE SYSTEM
  • ROLLER CAM PACKAGES

CALL US FOR DETAILS!

Turnkey pricing guideline and torque ranges:

Ford 302 / 289-290HP: $4795 — 321 to 328 ft/lbs torque
(This engine has a dual pattern cam with lots of vacuum for power brakes.
No need for stall speed converter.)

Ford 302 / 300HP: $4795 — 330 to 335 ft/lbs torque
(This engine has a dual pattern cam with lots of vacuum for power brakes.
No need for stall speed converter.)

Ford 302 / 330 HP: $4995 — 340 to 345 ft/lbs torque
(This engine has a dual pattern cam with a little less vacuum but still good for power brakes, and it has a great Old School Sound. Stall speed converter not required. Please call for full details.)

Ford 302 / 331HP: $4995 - 340 to 345 ft/lbs torque
(This engine has a single pattern cam. It has a little less vacuum for power brakes but still works, it's a little more aggressive cam. Still great Old School sound. Stall speed converter not required. Please call for full details.)


LET'S GO ROLLER!
ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!


DON'T FORGET TO ASK US ABOUT OUR 347 STROKER ENGINES!
Click HERE to see!


351 WINDSOR
Muscle car engines:

Ford 351W / 290-300HP: $5095 — 342-358 ft/lbs torque
(Dual pattern Cam has lots of vacuum for power brakes.
No need for stall speed converter.)

Ford 351W / 325-330HP: $5295 — 349-360 ft/lbs torque
(Dual pattern Cam has lots of vacuum for power brakes, etc. No stall speed converter required.)

Ford 351W / 350-354HP: $5495 — 373-376 ft/lbs torque
(This dual pattern cam has a little less vacuum, but it's okay for power breaks, and it has the best Old School sound. Stall speed converter is optional based on the cam.

Ford 351W / 360-365HP: $5695 — 377-382 ft/lbs torque
(This single patterned cam has very little vacuum, stall speed converter required. One of the best Old School sounds!)

DON'T FORGET TO ASK US ABOUT THE 408 STROKER ENGINES! CLICK HERE TO SEE MORE!

CHECK OUT OUR 347 STROKER ENGINES:

Ford 347 STROKER ENGINE 375HP: $6795 — 385 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 408HP: $6995 — 395 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 427HP: $7595 — 402 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Call for availability.

Please note these 347 Stroker engines are Forged Piston Engine Turnkey packages.



THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special pricing listed here!

Ask about our
Fast Track Startup:

That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE to learn more about FAST TRACK!

Fast Track animation

This Power2 engine combination has a great Old School sound. It is a great replacement mild street engine!

This engine has a MILD to MID-ROUGH IDLE, Comp or Howards Cam Kit CAM that puts out 331HP at 5200 rpm and 340 to 345 ft lbs of torque.

*Please note on the 289 to 290 HP, you do not need a stall speed converter. Please call us for details.*

This Power 2 Engine Combination is great for the everyday driver, in your MUSCLECAR, Street Rod, Hot Rod, Kit Car, or Custom Truck.

All our engines are custom HAND BUILT by professionals in our machine shop!

For Bronco, 4x4, JEEP
or Ford 4-wheel drive Trucks

Click Here for More Details

This Engine is a Seasoned Hand Picked Block.

Special features on this Turnkey engine include these:
(Be sure to scroll ALL the way down the page to see a more detailed listing.)

  • Howards or Comp Cam Kit (great old school sound!)
  • SEAL POWER/Speed Pro heavy duty pistons
    (piston application can vary depending upon horsepower)
  • STEEL FORGED RODS
    (higher horsepower engines also include ARP bolt kit)
  • NODULAR CRANK Pro Turn Micro Polish
  • Your choice of Edelbrock 600, 650 or 750 CFM electric choke
    or Holley 600 to 750 CFM electric choke.
    (some engines may require higher CFM carb)
  • Choice of 5 distributors:
    Pertronix Stage 1 is included in price;
    Pertronix Billet Stage 2 is extra;
    Pro Street HEI distributor is included;
    MSD 2 pack is extra;
    MSD 6AL 3 pack is extra.
  • Plugs, Plug wires. Call for colors!
  • PER Pro 7" High Performance Harmonic Balancer
  • Chrome valve covers, Chrome pulleys (for passenger side only, at extra cost. Fit only early 1970s and earlier)
  • New chrome air cleaner included. Custom air cleaners extra.
  • Water Pump and standard 5 qt oil pan included.
    (Custom oil pans are available for an extra charge.)
  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold for a little extra.
    Polished dual plane intake manifolds
    are extra.
  • New Aluminum Timing cover.
  • This engine will run on 89 or 91 Premium unleaded fuel.
  • Built based on one of our Dyno tested and road proven packages.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmission flywheels (4 or 6 speed, etc.)
  • Call for engine colors.
  • Don't forget to call us for pricing on Fast Track Start up and Break-in!
  • Fuel pump not included.
  • Customer must use his own pulleys for water pump and balancer.


What comes with your Power 2® engine?

Here's a listing of the parts and machine labor for your Power 2® engine from PhoenixEngine.com.

Your Power 2 Engine®
ENGINE PARTS
include:

  • Power 2® Howards or Comp Cam Kit (GREAT OLD SCHOOL SOUND!)
  • Power 2® hydraulic lifters, Seal Power/Comp
  • Power 2® spring set, heavy duty (940 series spring sets)
  • Satin aluminum intake manifold.
    (Polished or RPM dual plane intake manifold is extra.)
  • Heavy Duty Steel Stem intake valves
  • Heavy Duty Steel Stem exhaust valves
  • Premium positive valve seals, polyacrylate
  • Heavy Duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty stock or high volume Melling oil pump
  • Heavy duty Melling steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality American Speed Pro or Seal Power Heavy Duty pistons
  • P.E.R.® Speed Pro plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite main bearings, Real Tri metal, high quality
  • King or Clevite rod bearings, Real Tri metal, high quality
  • New rod nuts installed
  • Cam bearings, high quality 360 Set

Your Power 2 Engine®
MACHINE LABOR
includes:

  • P.E.R. 4-angle® valve job
  • Mill-matching surfaced heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank micro polish, radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street Balancing and blueprinting

ALSO CALL ABOUT OUR NEW KEITH BLACK PISTON ENGINES!

SOME ASSEMBLY IS NEEDED.

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on Mountain Standard Time (MST) all year round.

DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine.

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
Please be sure to read our full Disclaimer: CLICK HERE.

July 25, 2024

Fri, 7/26/24 13:49



Ford

Holley Sniper Fuel Injection System


Ask about the optional Holley
fuel injection system!

Holley
Holley Sniper fuel injection system

Ford

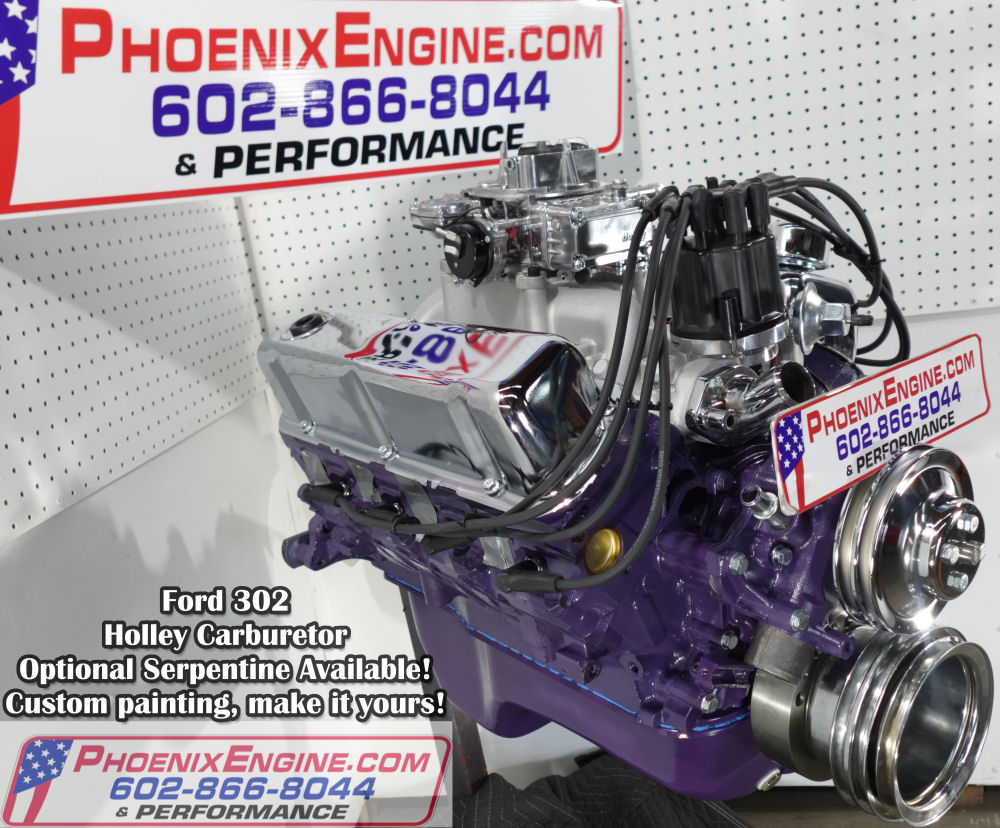

Ford 302 engine

Ford



Ford

Ford

Ford

Add a Holley Sniper fuel injection system as an upgrade. You can also upgrade to a serpentine system.

Holley

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
