Phoenix Engine  - Crate Engines for every need.

MAIN PHONE NUMBER: 602-866-8044

Return to Engine Catalog Index Page

Home Page

>

Engine Catalog

>

You are on the Ford-06 page





BRONCO MIDNIGHT BLUE TURNKEY ENGINE AND
TURNKEY 4 X 4

these are sold only as turnkey packages!!


Basic Pricing:

Ford 302 — 252 HP (Bronco I) from $4195
(torque range 280 - 287 ft lbs)

Turnkey package with small diamater distributor, etc. $4695

Ford 302 — 272 HP (Bronco II) from $4395
(torque 302 - 312 ft lbs)

Turnkey package with small diamater distributor, etc. $4895

Ford 302 — 292 HP (Bronco III) from $4595
(torque 337 - 342 ft lbs)

Turnkey package with small diamater distributor, etc. $5095

Ford 302 — 300 HP (Bronco IV) from $4995
(torque 340 ft lbs)

Turnkey package with small diamater distributor, etc. $5495

Ford 302 — 322 HP (Bronco V) from $5195
(torque 350 ft lbs)

Turnkey package with small diamater distributor, etc. $5695

Ford 302 — 340 HP (Bronco VI) from $5395
(torque - 361 ft lbs)

Turnkey package with small diameter distributor, etc. $5895


Torque ranges will vary depending upon cam and application.


LET'S GO ROLLER!
ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!



ALSO ASK ABOUT OUR
1978 and up Bronco Engines:
302 and 351 Windsor Engines!
1015 SERIES 4 X 4 FORD 302
and
351 WINDSOR 4 X 4 ENGINES!


NEW UPGRADES AVAILABLE:

  • HOLLEY SNIPER FUEL INJECTION SYSTEM
  • SERPENTINE SYSTEM

CALL US FOR DETAILS!




351 WINDSOR 4 X 4 ENGINES
(turnkey packages):

Ford 351W — 280HP: 341 ft lbs torque $4995
(Best vacuum, great low end and mid range and mileage.)

Ford 351W — 300HP: 361 ft lbs torque $5195
(Good vacuum, great low end and mid range with more torque)

Ford 351W — 325HP: 375 ft lbs torque $5395
(Great vacuum, great low end and mid range and mileage.)
This is one of the best for mid towing!

Ford 351W — 345HP 385 ft lbs torque $5595
(This one has good vacuum, great low end and mid range and mileage.)
This is one of the best for mid to heavy towing!

Ford 351W — 353HP 390-395 ft lbs torque $6295
This comes with aluminum heads.
Please note there are several cam choices that we recommend for this towing package, please call.
(Good vacuum, great low end and mid range.)
This one is the best for mid to heavy towing -- more torque!

Ford 351W — 360HP 400-410 ft lbs torque $6795
This engine comes with aluminum heads.
(Fair vacuum, good low end, mid range and top end.)
This one is best for mid-heavy towing and more torque.
This engine is designed more for the "toy" application.
This is a great Bronco toy engine, highly recommended by Bronco Clubs and 4 X 4 Clubs.

(Please call for more 1015 Series 4X4 engines!)

We are fuel injection specialists for 4x4s and Broncos!

Ask about our
Fast Track Startup:

That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE
to learn more about
FAST TRACK
!

Fast Track animation

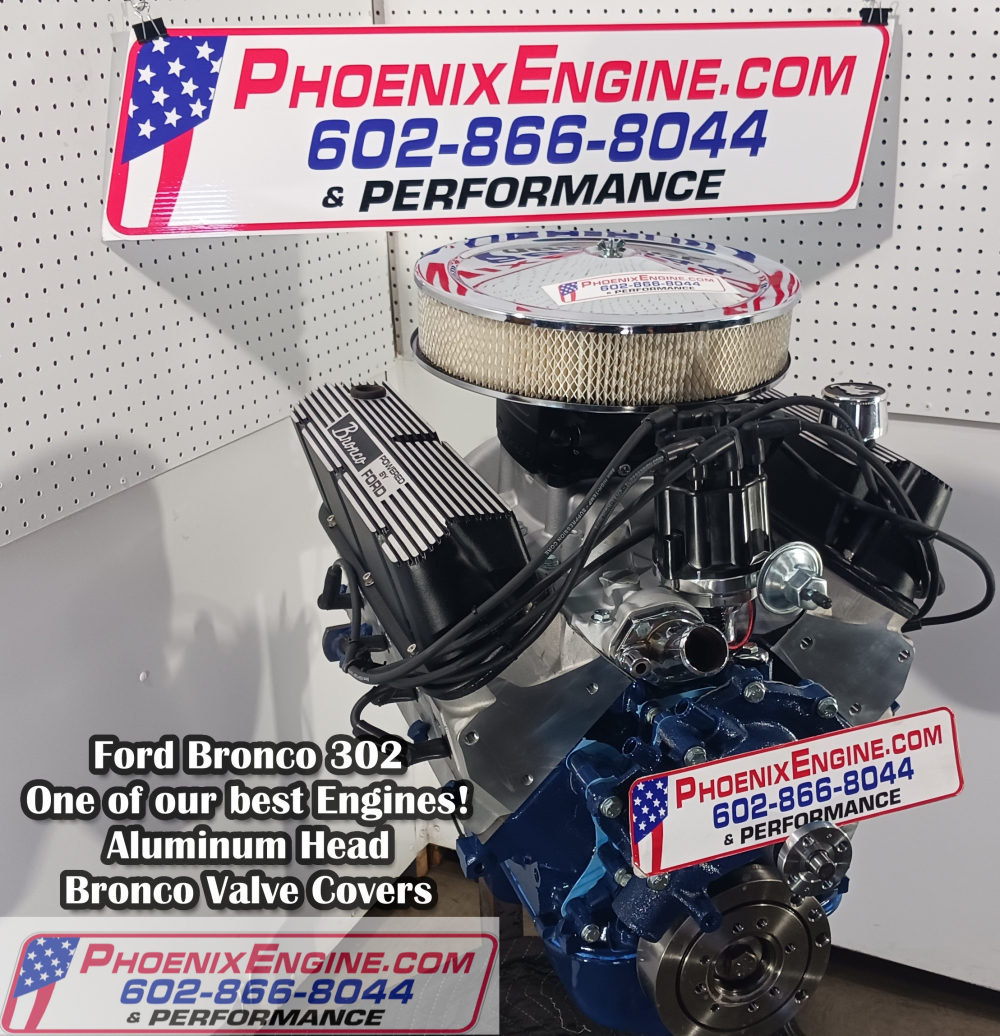

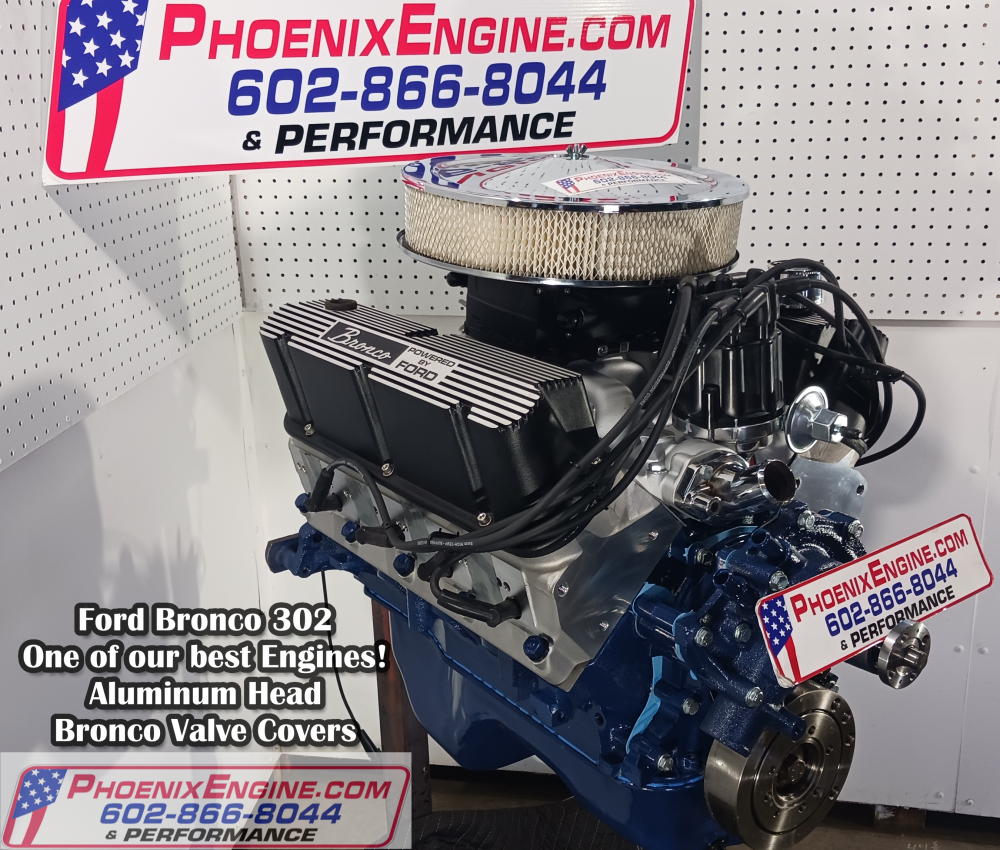

This is one of the best mild street engines around for BRONCOs 1966 and up to 1977;
For Streets and 4 x 4s, Ford custom trucks, 4 X 4s, & JEEPS.

All our engines are custom HAND BUILT by professionals in our machine shop!

Special features on this Turnkey engine include these new parts and more:
(Be sure to scroll ALL the way down the page to see a more detailed listing.)

  • Howards or Comp Cam Kit (great old school sound!)
    (Ask about upgrading to a Roller Cam!)
  • SEAL POWER/Speed Pro heavy duty pistons
    (piston application can vary depending upon horsepower)
  • Compression pistons is 8.1 to 1.
    Higher HPs are 9.5 to 1 for pump gas.
  • Ford cast iron heads with hardened exhaust seats.
  • Also available as an upgrade are our recommended Aluminum Heads.
  • STEEL FORGED RODS 302 Ford Bronco rods (higher horsepower engines also include ARP bolt kit)
  • NODULAR CRANK Pro Turn micro polished
  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold for a little extra.
    Polished dual plane intake manifolds are extra.

  • NODULAR CRANK Pro Turn Micro Polished
  • Your choice of Edelbrock 600, 650 or 750 CFM electric choke
    or Holley 600 to 750 CFM electric choke.
    (some engines may require higher CFM carb)
  • Choice of 5 distributors:
    Pertronix Stage 1 is included in price;
    Pertronix Billet Stage 2 is extra;
    Pro Street HEI distributor is included;
    MSD 2 pack is extra;
    MSD 6AL 3 pack is extra.

  • Plugs, Plug wires. Call for colors!
  • PER Pro 7" High Performance Harmonic Balancer
  • Chrome valve covers included.
    Aluminum Bronco valve covers are extra.
  • New chrome air cleaner included. Custom air cleaners extra.
  • Water Pump included. (You must keep your water pump and balancer pulleys.)
  • Bronco oil pans are available for an extra charge for your 4x4 or Bronco engine.
    (Custom oil pans are available for an extra charge.)
  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold for a little extra.
    Polished dual plane intake manifolds
    are extra.
  • New Aluminum Timing cover.
  • This engine will run on 89 or 91 Premium unleaded fuel.
  • New P.E.R. HP harmonic balancer
  • Call for info on flex plate or fly wheel.
  • Call for info on standard transmissions (4, 5, or 6 speed, etc.)
  • This engine is a seasoned block, hand picked for each engine application.
  • Built based on one of our Dyno tested and road proven packages.
  • Call for engine colors. (Standard enamel colors are no charge.)
  • Don't forget to call us for pricing on Fast Track Start up and Break-in!

5/16/24

Note: These engines will need a 4X4 rear sump oil pan (extra charge).
If you have a 4X4 pan, you can send it to us.


What comes with your Power 1 or Power 2 ® engine?

Your Power 1 or Power 2 ®
ENGINE PARTS include:

  • Power 1 or 2® Howards or Comp Cam kit. GREAT POWER AND SOUND FOR YOUR BRONCO!
  • Power 1 or 2® Howards or Comp Cam or Seal Power hydraulic lifters
  • Power 1 or 2® spring set, heavy duty (940, series spring sets)
  • New Edelbrock satin aluminum intake manifold (Polished or dual plane intake manifold is extra).
  • HD Stem steel intake valves
  • HD Stem steel exhaust valves
  • Premium positive valve seals, polyacrylate
  • Melling heavy duty roller timing chain
  • Controlled internal oil system (a P.E.R. exclusive!)
  • Melling heavy duty High volume oil pump
  • Melling heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality Seal Power Silvolite Heavy duty pistons
  • P.E.R.® Seal Power HP plasma molly rings
  • Brass freeze plug kit, oil gallery plug kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite Main bearings, King Tri metal, high quality
  • King or Clevite Rod bearings, King Tri metal, high quality
  • New ARP rod bolts & nuts installed
  • Cam bearings, high quality 360 Set

Your Power 1 or 2 Engine®
MACHINE LABOR includes:

  • P.E.R. 3-angle® valve job
  • Mill-matching surface Heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline Boring
  • Power hone to fit pistons and rings
  • Custom crank Micro polished radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing

We Dyno'd this engine (original) with Edelbrock 600 cfm, and an Edelbrock AVS 4x4 carb, Holley 600 and 670 cfm Street Avenger carb for four wheel and mild street. All did very well on pump gas.

ASK US ABOUT OUR CARB and ELECTRONIC DISTRIBUTOR PACKAGE FOR THIS TYPE OF POWER ENGINE

Engine comes completely assembled, intake to oil pan.

ASK US ABOUT OUR TURN KEY PACKAGE FOR THIS TYPE OF POWER ENGINE.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex

Call PhoenixEngine.com today to order!
Telephone: 602-866-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

7/27/24 10:59

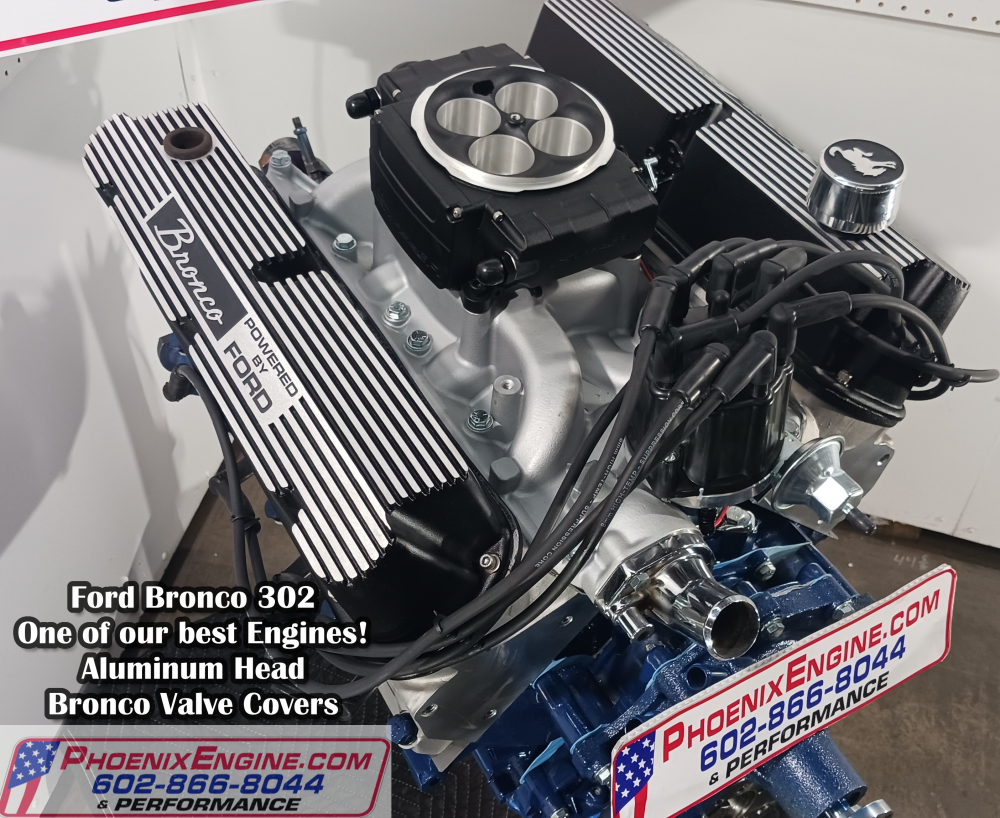

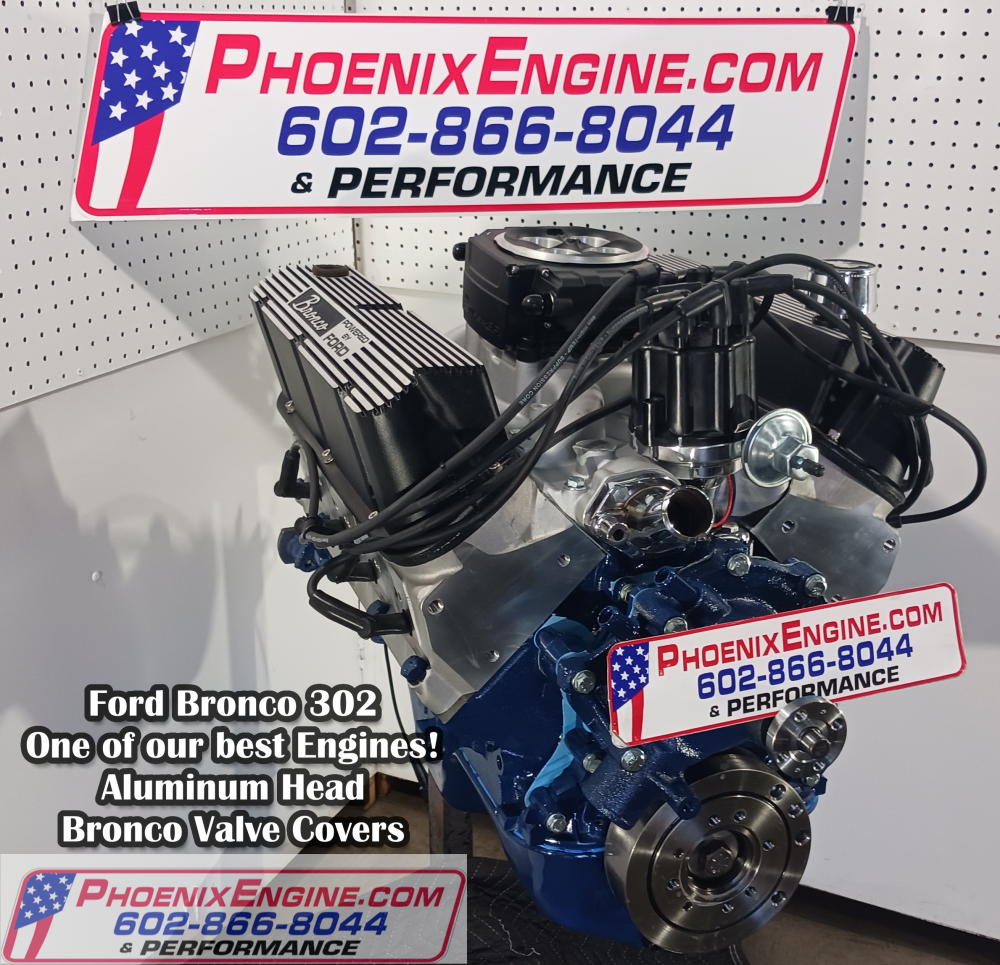

Ask about an upgrade to Holley Sniper fuel injection system... and a serpentine system!Holley on copper

Bronco

Bronco

334

Holley Sniper fuel injection system
Ask about a Holley Sniper injection system upgrade or a serpentine system upgrade!

Bronco

Bronco

Bronco

Bronco

Holley Sniper

Holley with serpentine and air filter



* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
