CHEVY 454 CI BIG BLOCK
HP: 502/527/530/547/548/549/550+
TURNKEY PACKAGE
ENGINE
HIGH PERFORMANCE FAST TRACK 10

Base price and torque ranges for these aluminum head engines (hydraulic cam unless noted):

Chevy 454ci 502 HP: from $6795 — 558 to 584 ft lbs torque

Chevy 454ci 527 HP: from $6995 — 578 to 615 ft lbs torque

Chevy 454ci 530 HP: from $7595 — 578 to 625 ft lbs torque
(This is a roller cam package.)

Chevy 454ci 547 HP: from $7395 — 596 to 636 ft lbs torque

Chevy 454ci 548 HP: from $8095 — 602 to 642 ft lbs torque
(This is a roller cam package.)

Chevy 454ci 549 HP: from $8395 — 608 to 650 ft lbs torque
(This is a hydraulic cam package.)

Chevy 454ci 550 HP: from $8895 — 614 to 654 ft lbs torque
(This is a roller cam package.)

Chevy 454ci 575 HP: starting from $8995 - Introducing this new street and race engine. Please call us for specs on it!

Chevy 454ci 602 HP: starting from $9995 - Introducing this new street and race engine. Please call us for specs on it.

Please note that horsepower and torque variations are from different cam combinations.


ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!


This one is a true TORQUE MONSTER!
Built from one of our Dyno packages!
Your specific engine can be Dyno tested for an additional charge.



Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE to learn more about FAST TRACK !

Fast Track animation

Your Power Engine®
ENGINE PARTS include:

  • This Engine is a 2-bolt Seasoned Heavy Duty Chevy Big Block. Higher horsepowers are 4-bolt.
  • Engine Will Run on unleaded fuel 91+
  • SPEED PRO HYPEREUTECTIC DOME PISTONS
    start at 9.1 or 10.1 and depending upon horsepower
    go to 11.9 or 12.1.
  • Cams can be single or dual patterned, depending upon the application. Cam sizes vary depending upon engine size and horsepower; starting at 510, 520, 550, 556, 557, 558 or 593 and going up to a big 612 for the high horsepower roller cam packages.
  • 2800 to 3000+ Stall Speed Convertor Required
  • This one is a real THUMPER
  • GREAT OLD SCHOOL SOUND
  • Holley 750 CFM carburetor OR
    Holley 800 CFM carburetor OR
    Holley 850 CFM carburetor
  • Pro Billett HEI distributor with MSD kit.
  • MSD 2-pack included;
    the 3-pack 6AL box kit is extra;
    the 3-pack 6AL-2 box kit is extra.
  • Plug wires and spark plugs.
  • Chrome air cleaner included, black is extra.
  • Water pump, water pump pulleys, and crank shaft pulleys are included.
    (Some engine applications are not included.)
  • Pro-Filer ALUMINUM HEADS or ProHeader
  • Heavy Duty Roller Timing chain high per
  • S&S or Comp Screw In Studs, Guide plates
  • SSB Roller Rockers, SSB Molly Push Rods
  • Comp SSG Raised Guide Plates
  • STEEL FORGED RODS with ARP rod bolts
  • NODULAR CRANK for lower horsepower:
    STEEL FORGED crank for higher horsepower (575 & 602)
  • NEW Dual Plane High Rise Intake Manifold
  • New high performance Harmonic Balancer
  • Flex plate for automatic transmission is included, call for standard transmission (4- 5- or 6-speed). Fly wheel is extra.
  • ALUMINUM fabricated valve covers included (see photo).
    Optional (extra cost): GM angle valve covers
  • GM painted steel timing chain cover or aluminum timing cover included, your choice.
  • 7 qt basic oil pan included.
    Custom oil pans available at additional cost, depending upon your application.
  • Note let us know what your frame dimensions are.
  • Call us regarding 4-bolt Seasoned Heavy Duty Chevy Big Block
  • Comes completely assembled
  • Power 4 ® cam kit (see description above)
  • Power 4 ® Comp or Howards Cam hydraulic lifters
  • Power 4 ® Comp spring set, high performance
    (900 series spring sets, depending upon application)
  • Dual plane High Rise intake manifold for lower horsepower;
    Air Gap High Rise intake manifold for higher horsepower.
  • SMALLER HORSEPOWER ENGINES:
    One piece stainless steel intake valves 207
    One piece stainless steel exhaust valves 1.7

  • LARGER HORSEPOWER ENGINES:
    Bigger engines require 2.250 nitrited intake valves
    and 1.880
    nitrited exhaust valves.
  • Premium positive valve seals, polyacrylate Viton
  • Heavy Duty high performance true roller timing chain
  • Controlled internal oil system (a Phoenix Engine exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality Speed Pro Dome hypereutectic pistons
  • Speed Pro High Performance plasma molly rings
  • Brass freeze plug kit, oil gallery plug kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • Clevite 77 main bearings, Real Tri metal, high quality
  • Clevite rod bearings, Real Tri metal, high quality
  • New forged rods installed with ARP bolts
  • Cam bearings, high quality 360 set
  • Built from one of our Dyno tested and road proven Dyno packages. Your specific engine can also be Dyno tested, for an additional charge.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.
  • Fuel pump not included.
  • Customer must use his own pulleys for water pump and balancer.

Your Power Engine®
MACHINE LABOR
includes:

  • P.E.R. 4-angle® valve job
  • Mill-matching surface heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    (true 90 degree V8 centerline boring)
  • Power hone to fit pistons and rings
  • Custom crank micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • ARP rods, bolts installed
  • Rods checked for alignment
  • Block deck match
  • Blueprinting and street race balancing

THIS IS OUR TURN KEY PACKAGE FOR THIS TYPE OF HIGH POWER ENGINE.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
283 - 327 - 350 - 383 - 396 - 406 - 427- 454 - 496 - 502
AND MORE!

This Power 4 Engine® combination will be great in your musclecar, street, strip, hot rod, kit car, custom truck, 4X4, or Jeep!! It is an excellent street machine.

This engine is a 2-bolt seasoned heavy duty Chevy big block. GREAT OLD SCHOOL SOUND! The engine will run on 91+ unleaded fuel.

Example engine was DYNO TESTED in our shop and road proven. This is a very good street High Torque engine!

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex



Call PhoenixEngine.com today to order!
Tel: 602-866-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.


6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
3/13/15 pc
12/7/15 hours
3/25/16 txt, bullets
9/14/16 txt,dyno,dsclmr
2/18/17 txt
5/25/17 tax
5/3/18 txt
1/21/19 grynav
1/23/19 txt cams,lifters,mollyrings
6/3/24 13:30
03/07/2024
6/2/24
7/3/24

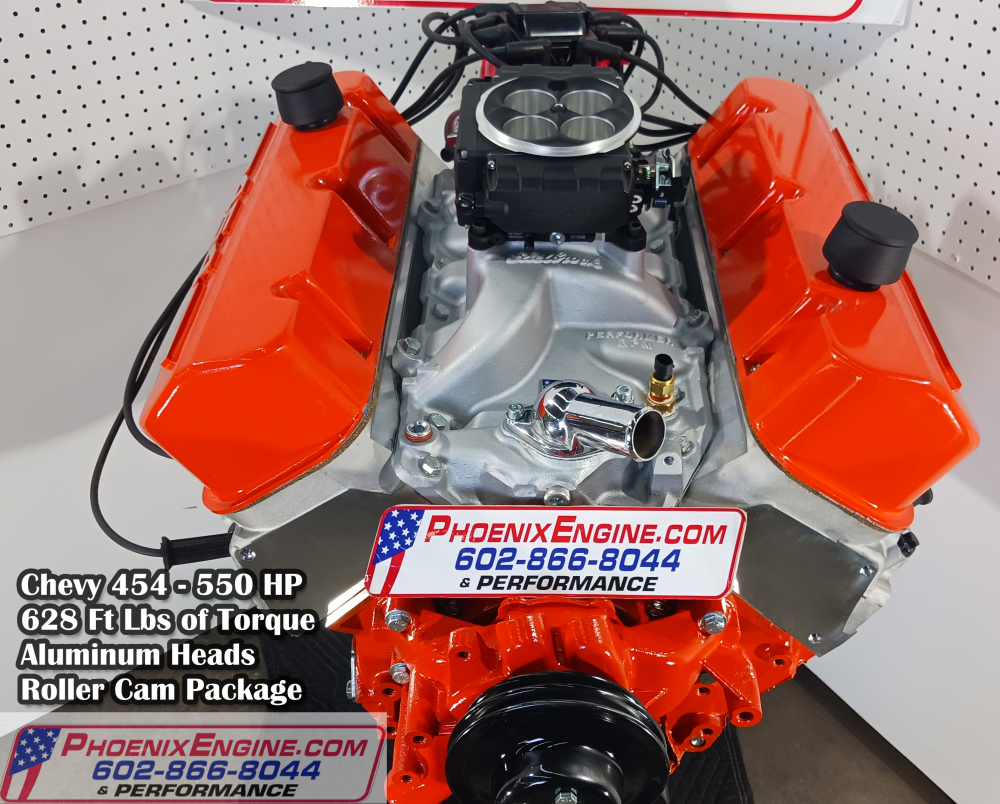

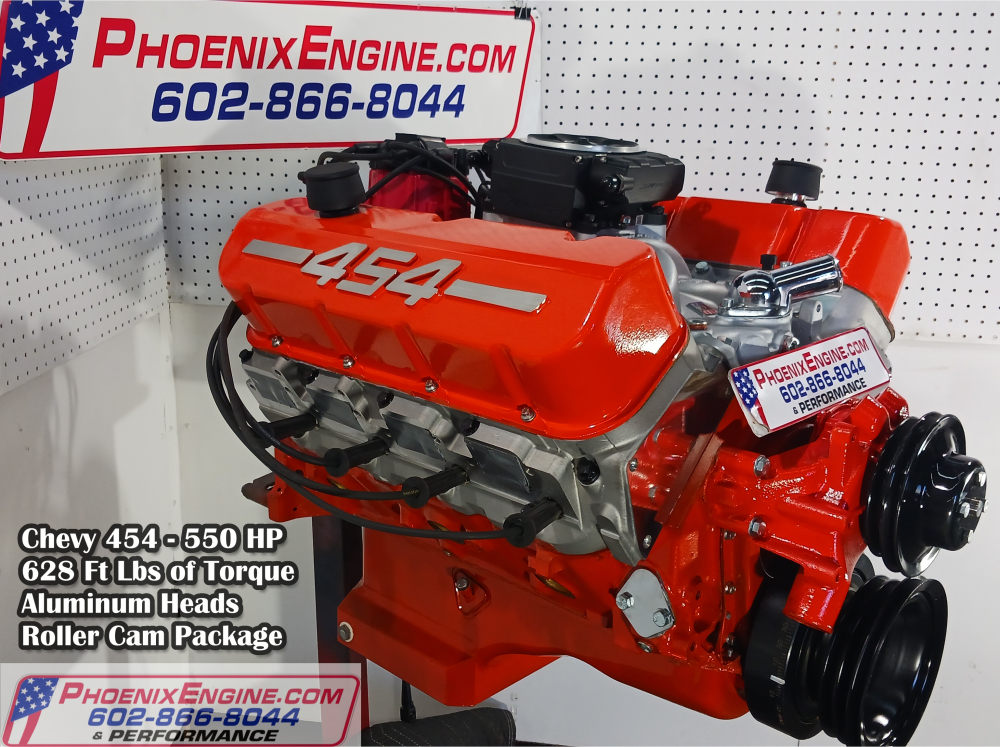

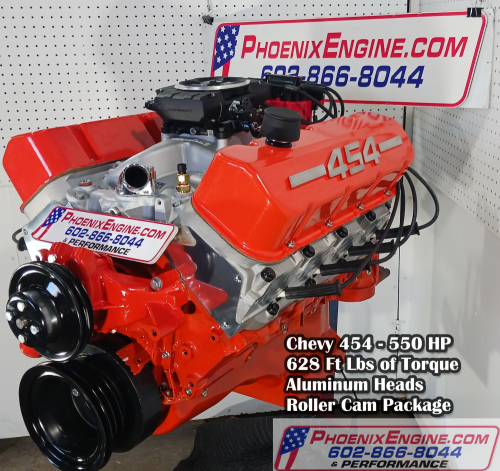

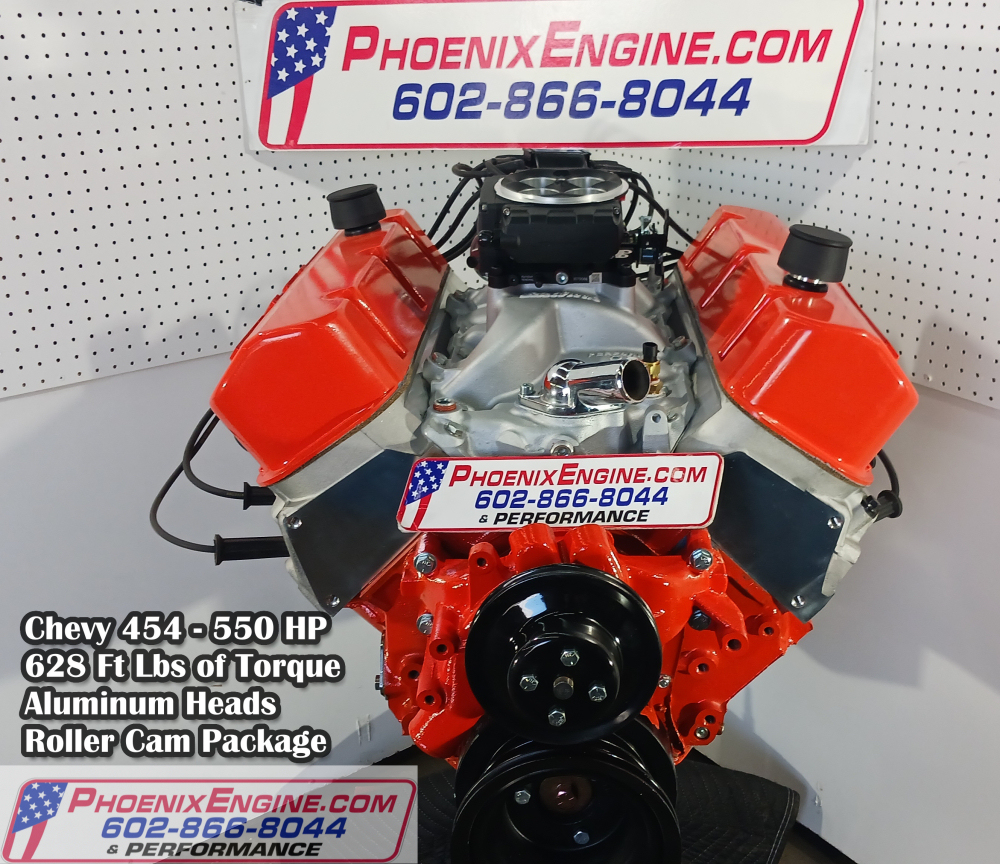

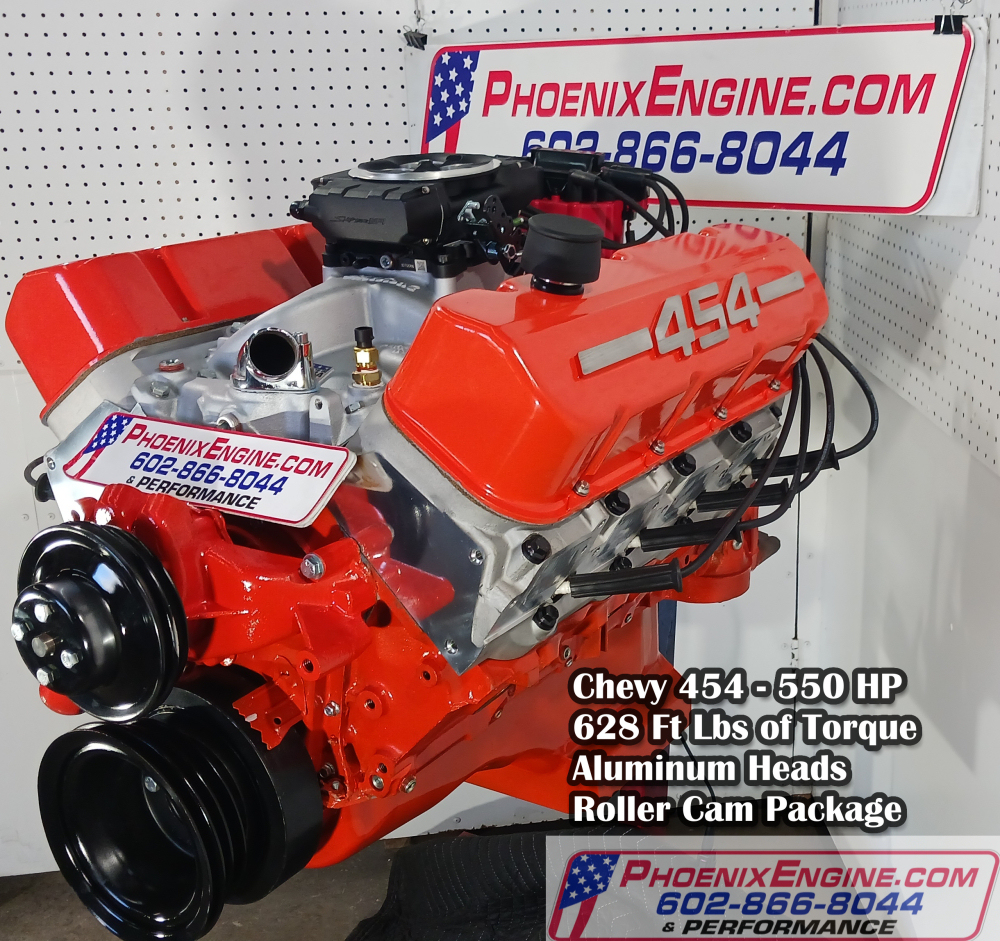

Chevy 454
Click on the photo to enlarge

Chevy 454
(Click on the photo to enlarge)

Chevy 454
(Click on the photo to enlarge

Chevy 454

(Click on the photo to enlarge)

Chevy 454
(Click on the photo to enlarge)

Chevy 454
(Click on the photo to enlarge)

Chevy 454ci
(Click on the photo to enlarge)

Chevy 454
(Click on photo to enlarge)

Chevy 454
(Click on photo to enlarge)

Chevy 454
(Click on photo to enlarge)

Chevy 454
(Click on photo to enlarge)

Chevy 454
(Click on photo to enlarge)

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

Chevy 454 - 549 HP Big Block Turnkey Engine

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
